UCP

Pillow Block Bearing Units

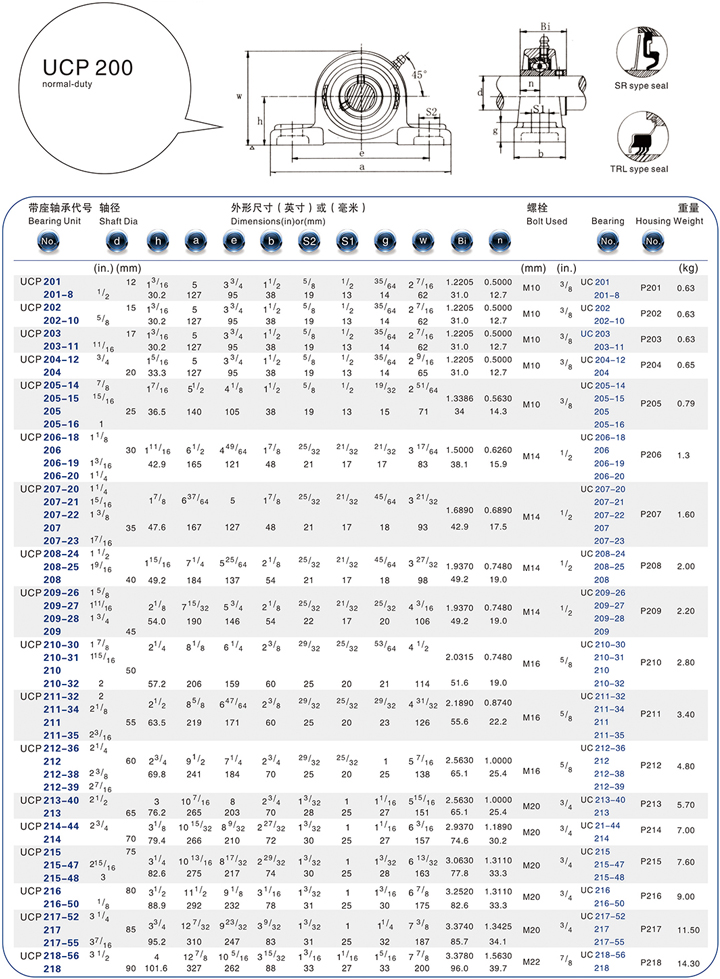

UCP series spherical bearing with seat is the most representative form of bearing components. The bearing seat P has a flat bottom and a solid one. This series is available in UCP200 and UCP300. UCP300 series bears larger load than UCP200 series. Since the root of the bearing pedestal installation part is provided with a stiffener, it is a high-strength structure for all directions. In addition, bearing pedestal P can also be used with UK, UEL, NA series bearing assemblies, and UK assembly pass taper hole (UKP), and the nominal model of the applicable adapter sleeve is attached to the engineering model of the assembly. The main uses of this series are: transmission device, fitness device, harvester, etc. For example, the cast steel outer spherical surface bearing HCP207 (UELP207), solid seat outer spherical surface bearing UCP205, HCP206 (UELP206), etc. provided by Guoxin Company, as well as the FGJ205 single connection outer spherical surface bearing with seat and FGJ double connection outer spherical surface bearing (one bearing seat is equipped with two outer spherical surface bearings) designed according to customer requirements, have been applied to corn harvesters and peanut harvesters. After use, they have received unanimous praise from customers.
