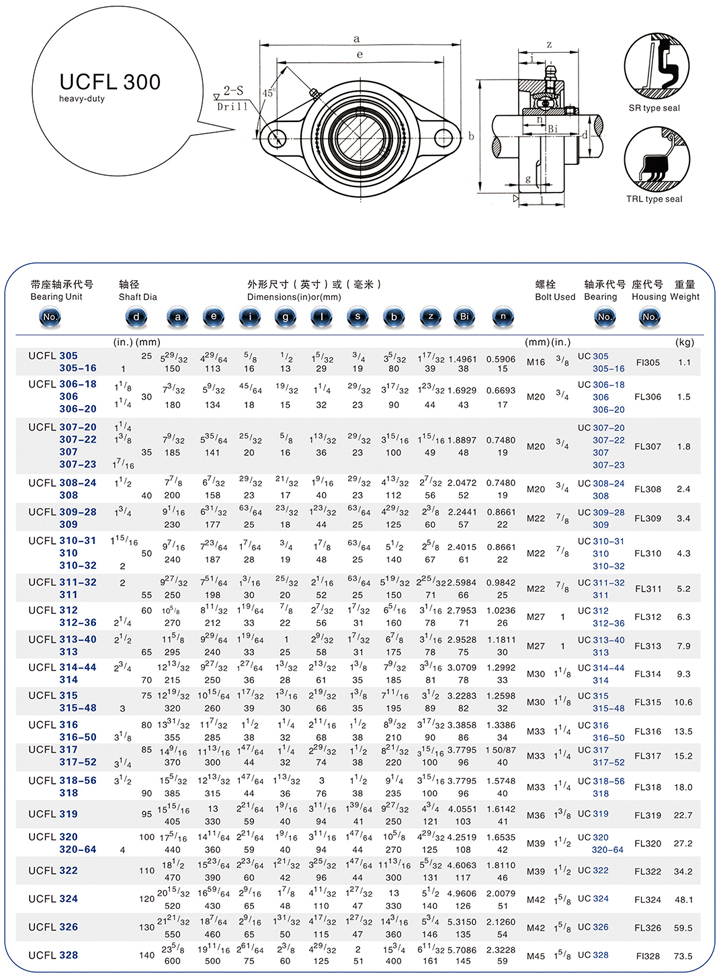

UCFL

Two Bolt Flange Bearing Units

Bearing pedestal FL and UC can form two series of UCFL200 and UCFL300. Similarly, it can also be used with UK, UEL (NA), UB, SB and other components. UCFL series combination is light in structure and convenient in installation. It is suitable for installation in transmission parts with small area. Like UCF series, it is suitable for installation in vertical planes such as mechanical side. Because the center distance between two mounting bolt holes of diamond bearing block and the center distance between two bolt holes of diagonal position of square bearing block are the same, they are interchangeable with each other. The SBLF200 series of spherical bearing with seat is designed with diamond seat for the purpose of lightweight. There are 7 models in this series from SBLF201 to SBLF207. Bearing pedestal LF can also be assembled with UB (SB) and UE (SA). The products are mainly used in packaging machinery, fruit sorting machines and other equipment.
