UK

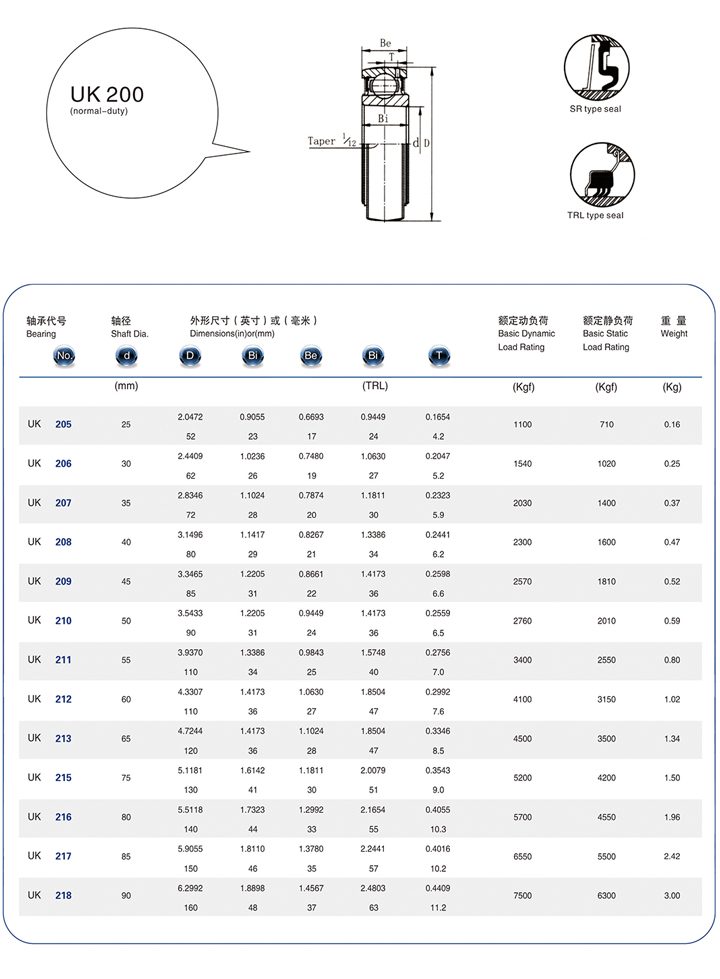

Insert Bearings with Adapter Sleeve Locking

The inner diameter of UK200 series spherical ball bearings is 1:12 taper bore, which can be directly installed on the tapered shaft or used with a set bushing, and the bearing clearance can be adjusted. The characteristics of this type of spherical ball bearings are: they can accept more load than the spherical ball bearings with jackscrews of the same inner diameter, have high bearing capacity, small radial section, can save space, but relatively low speed. Reduce the consumption of force and play the role of safety protection. The tight sleeve outer spherical bearing is suitable for machinery with vibration and impact loads and the connection of two shafts. In situations where vibration and rotation accuracy are required to be high, it has higher speed and bearing capacity than UC and HC bearings with the same inner diameter.
